Grand Brass Lamp Parts, LLCStaff Answer
Jun 23, 2026 - 07:44 AM

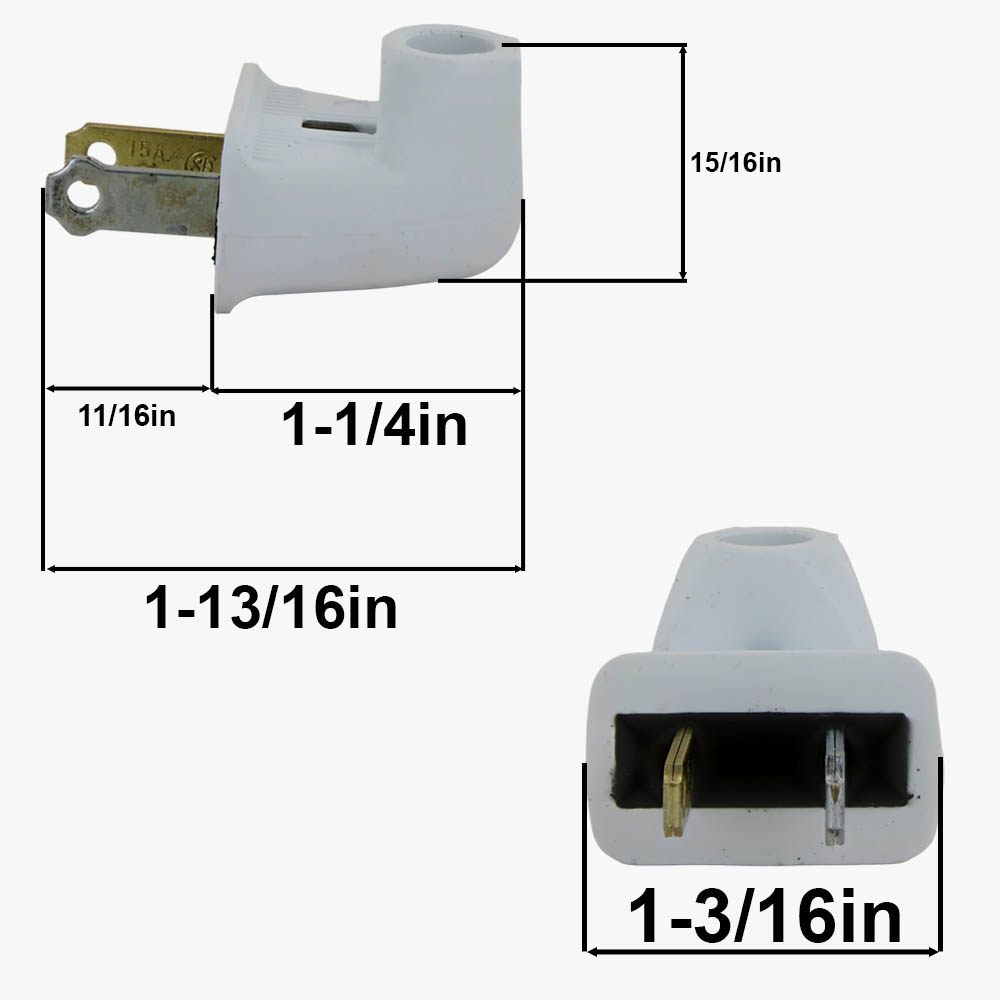

Hope this diagram helps. Please note that all measurements are approximate and were taken by hand using a caliper. Dimensions have been rounded to the nearest 1/16in and should be used as a reference only.
low profile angle plug Polarized, Non-Grounding, 2 Wire, Flat Angle, Side Outlet, Lamp Plug with Screw Terminals - White
what is the dimension of the projection of the plug from the wall on this? is it the lowest projection flat/angle plug you sell? I am wiring a lamp that will plug in behind a headboard and there is limited space.
Status:
Open Jun 23, 2026 - 07:44 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
Polarized, Non-Grounding, 2 Wire, Flat Angle, Side Outlet, Lamp Plug with Screw Terminals - White
Polarized, Non-Grounding, 2 Wire, Flat Angle, Side Outlet, Lamp Plug with Screw Terminals - White. Features Rubber 2 pole/2 wire 15 amp, 125 volt Nema 1-15 0.33in cord diameter Flat Angle plugs allow placement of cord in convenient location Plug blades are firmly embedded in body Rubber p...
